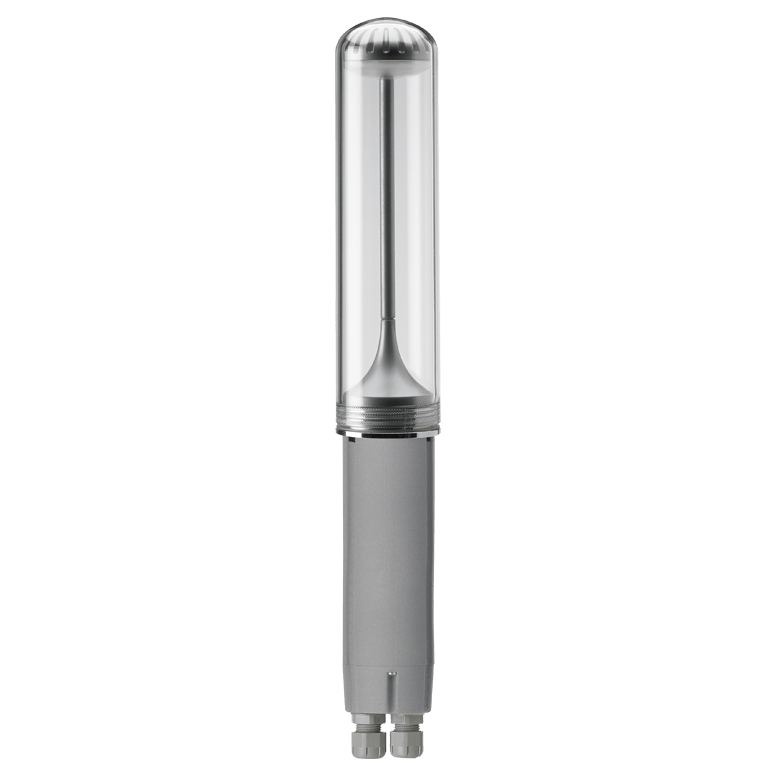

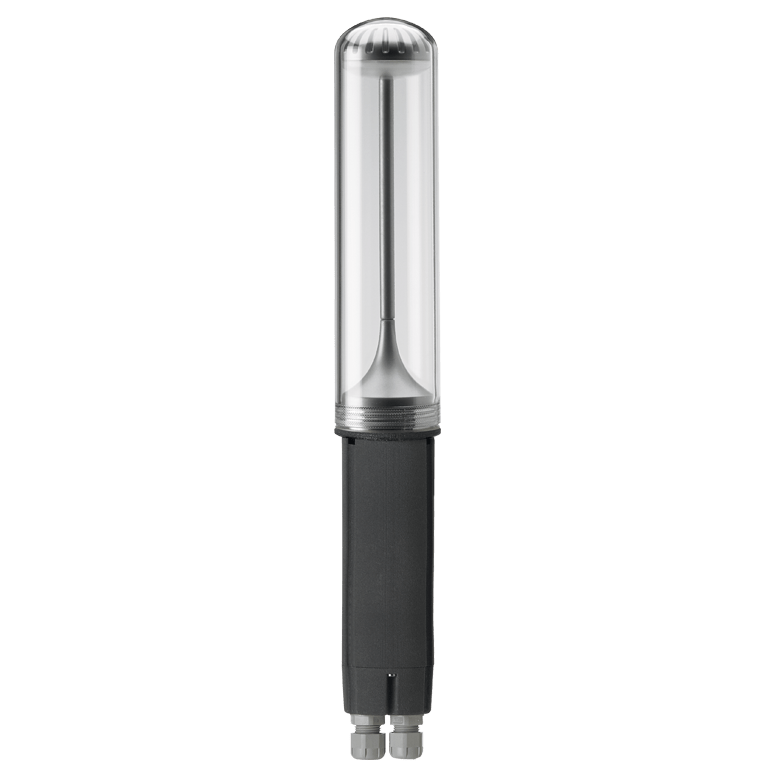

I-mago
With its unique design and skilful proportions, I-MAGO enhances the lightness and momentum of the shapes, lighting up like a small waterfall, a luminous hourglass.
The slender stem that actually lights up supports an upper LED board capable of brightly illuminating the ground directly, downwards, with a diffusion angle of 120° and without upward dispersion. To fit with discretion and elegance in the gardens, near the walkways, at the edges of open spaces, it is composed with poles in two different heights in extruded aluminum or stainless steel
The slender stem that actually lights up supports an upper LED board capable of brightly illuminating the ground directly, downwards, with a diffusion angle of 120° and without upward dispersion. To fit with discretion and elegance in the gardens, near the walkways, at the edges of open spaces, it is composed with poles in two different heights in extruded aluminum or stainless steel
Funktioner

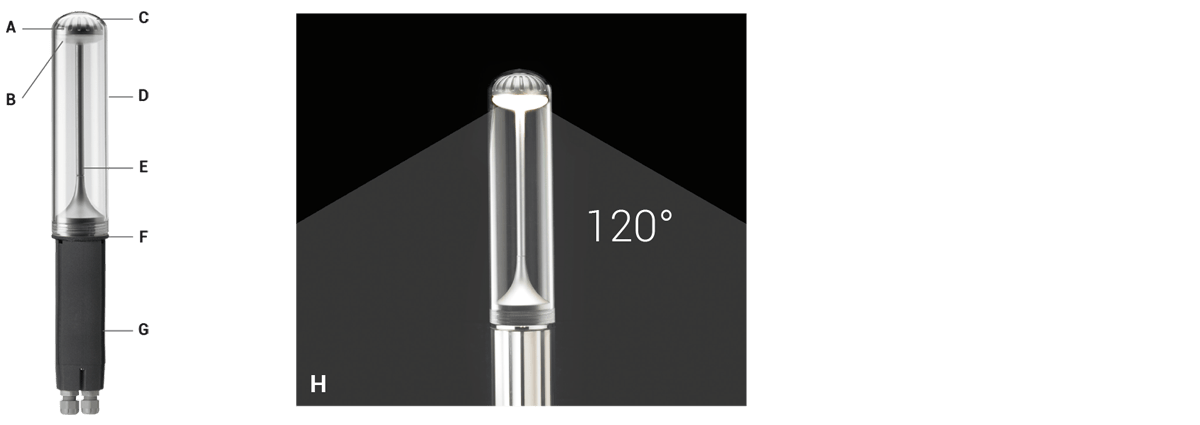

Light body
A. Led unit 7,5W / 750 lumen
B. Opal diffuser
C. Round thermal heat sink
D. Clear diffuser
E. Anodized Aluminium
F. Holding ring
G. 220-250 V 50-60 Hz driver
Angle beam
H. Light beam angle: 120° downwards.
A. Led unit 7,5W / 750 lumen
B. Opal diffuser
C. Round thermal heat sink
D. Clear diffuser
E. Anodized Aluminium
F. Holding ring
G. 220-250 V 50-60 Hz driver
Angle beam
H. Light beam angle: 120° downwards.

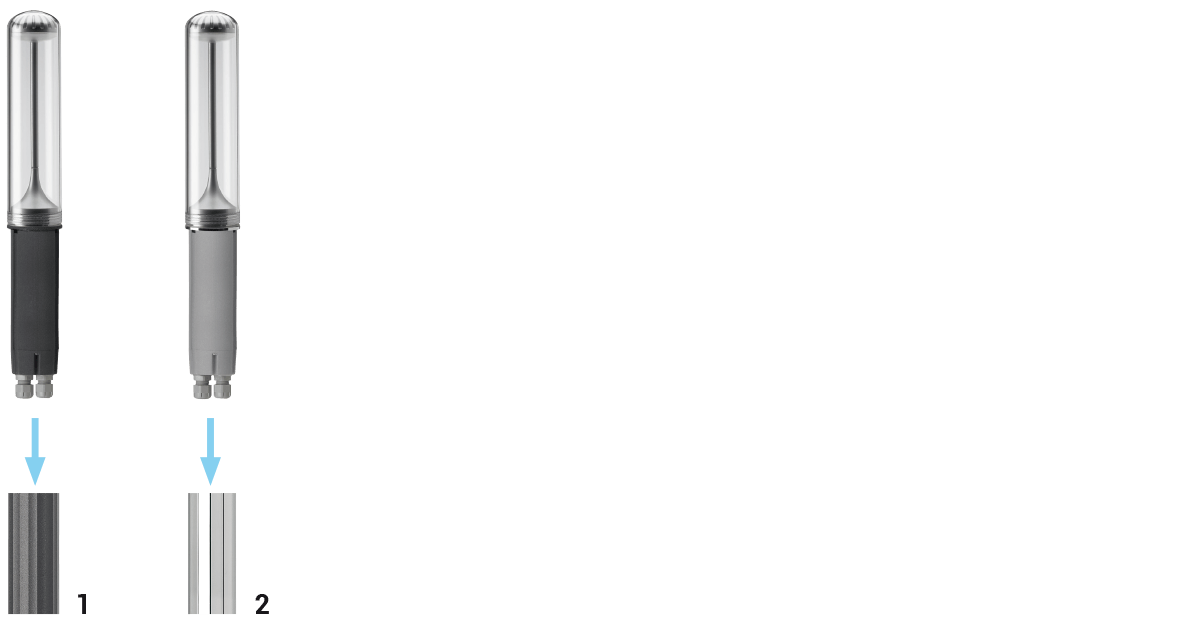

The poles
1. Aluminium pole
2. AISI 316L Stainless Steel pole
1. Aluminium pole
2. AISI 316L Stainless Steel pole

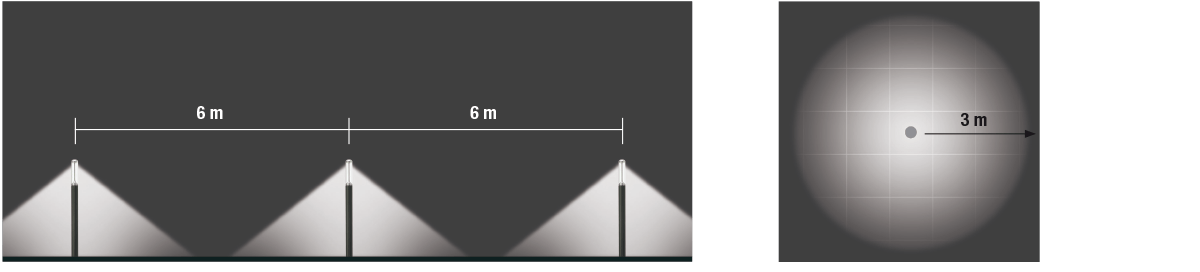

Installation
Spacing suggested with h 375 mm pole: 6 m
Light distribution: 3 m
Spacing suggested with h 375 mm pole: 6 m
Light distribution: 3 m
