Name: Markstrålkastare CLOCK Ø 80 mm 220-250V
SKU: 3628
Price: 234.00 SEK
Availability: InStock

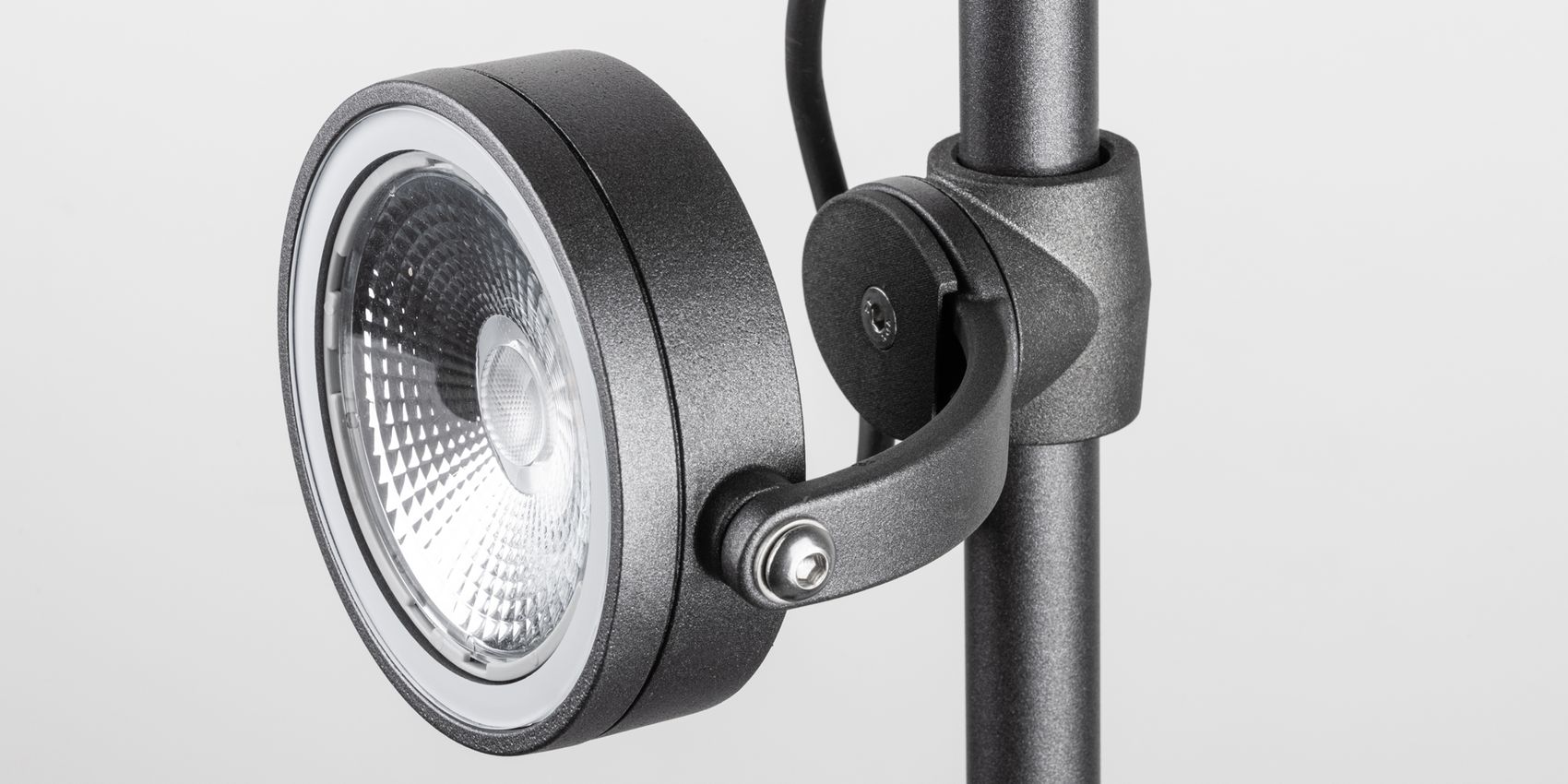

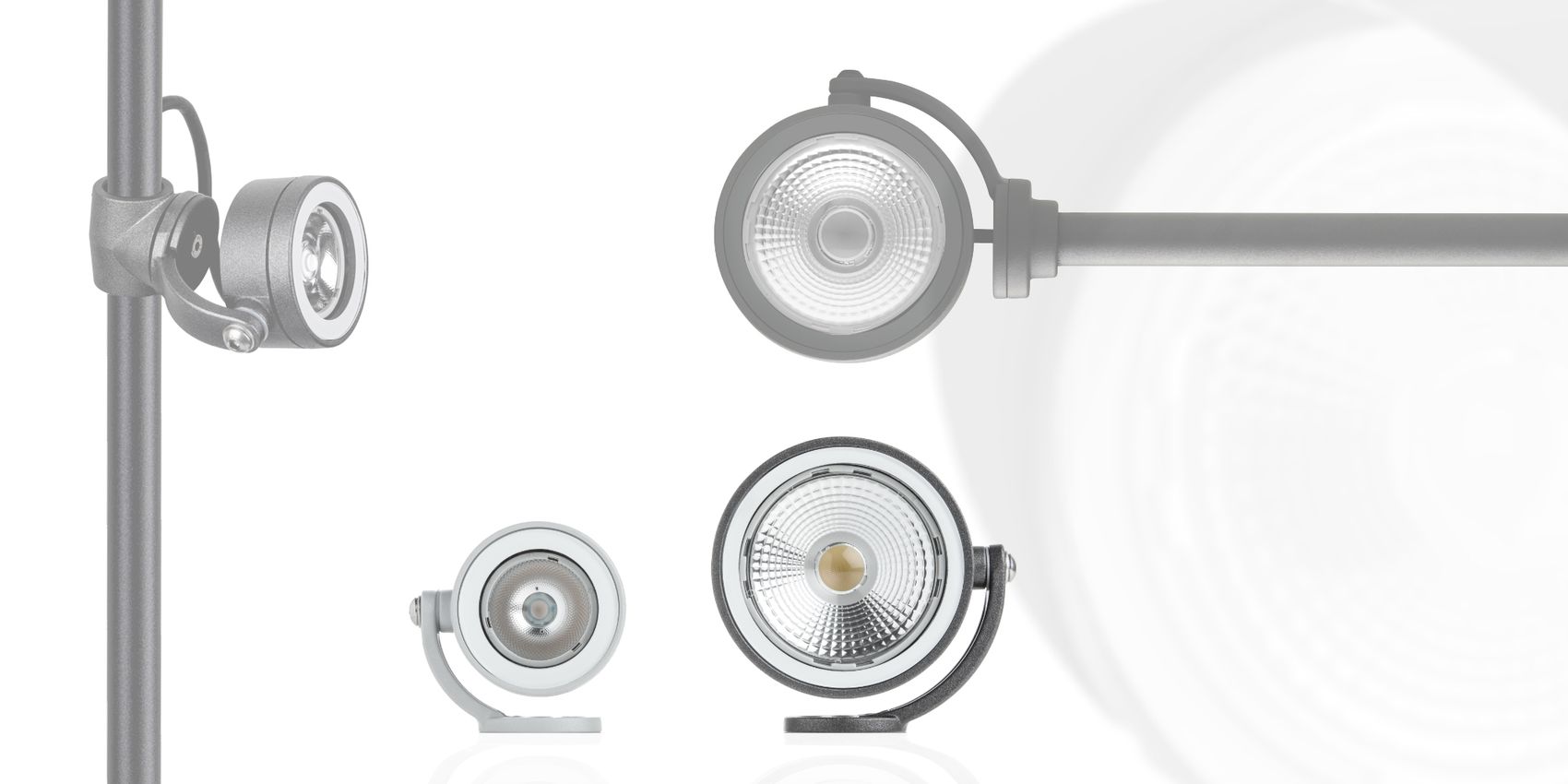

Markstrålkastare CLOCK Ø 80 mm 220-250V

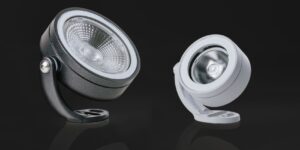

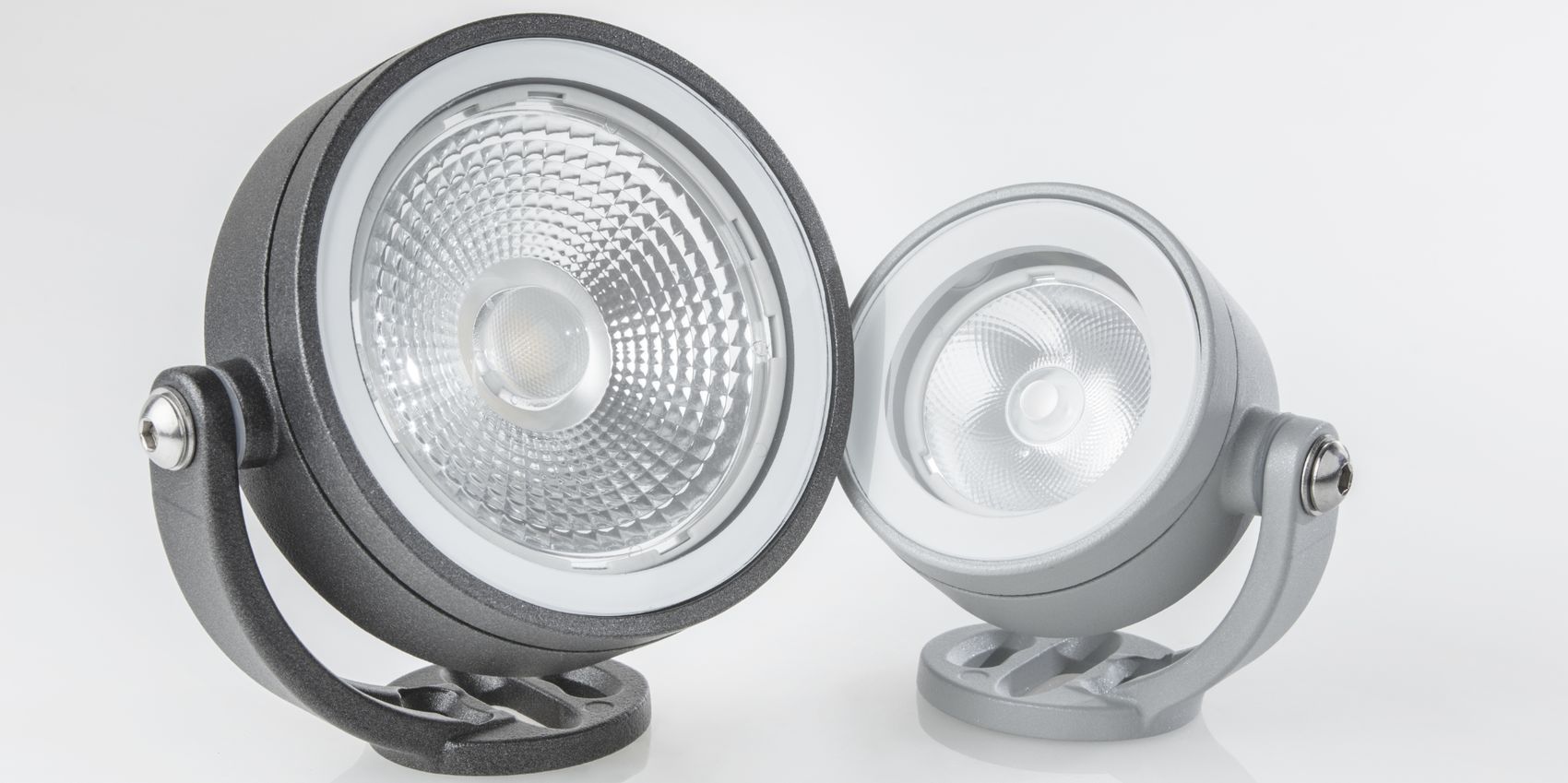

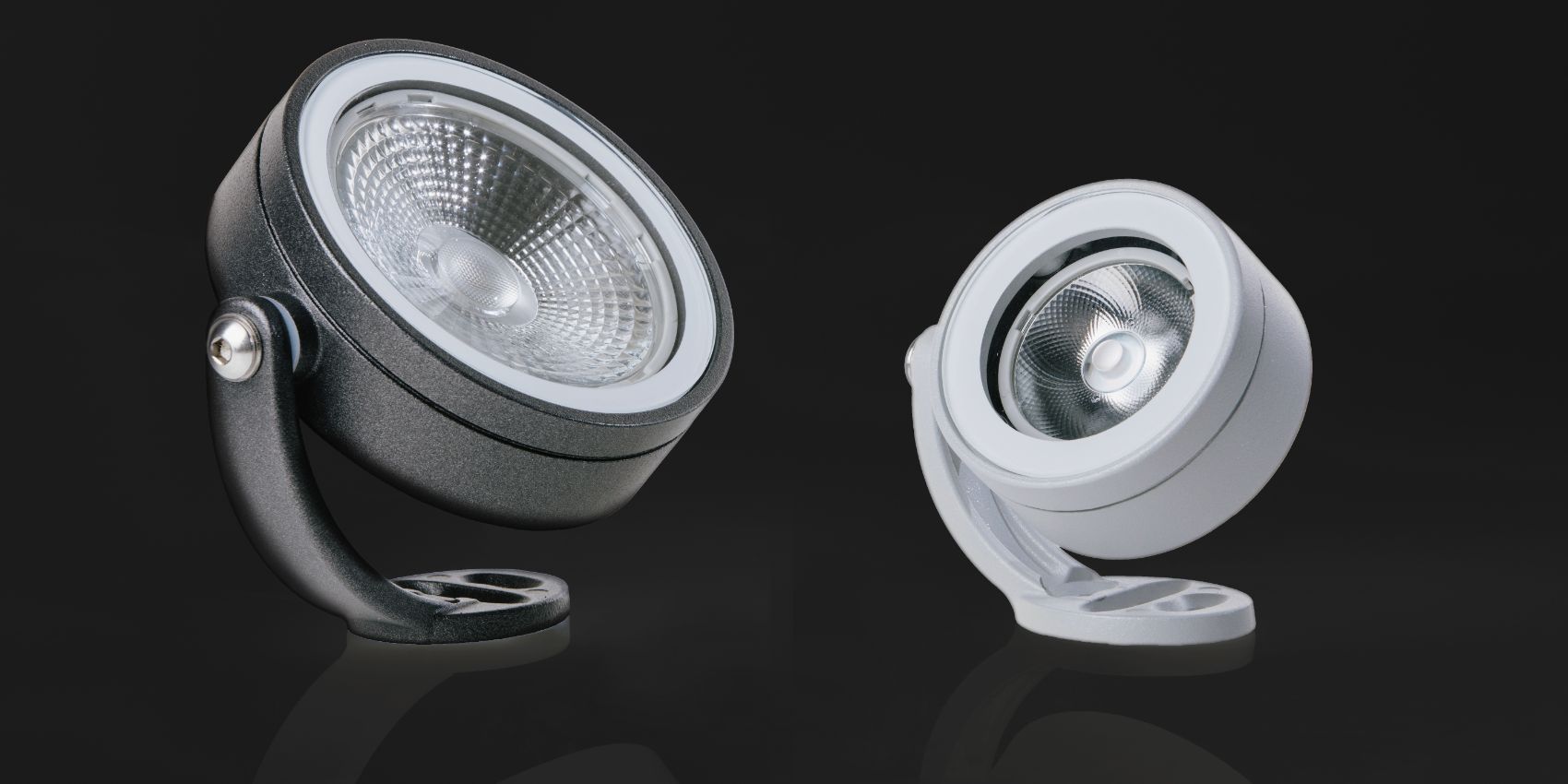

A small circular projector with an essential design and character, CLOCK is a versatile and precise spotlight. Low thickness and elegant adjustability, with its two dimensions it offers great lighting quality, thanks to the high-performance LEDs and specific designed optics to allow various ways of using the luminous flux.
The accessories supplied increase the types of installation and the visual comfort of CLOCK with style - punctual solutions for scenographic and vibrant accent lighting.

Artikelkod	Beskrivning	Kulör	Ljusfärg	Ljusvinkel
77.4661GR3K	Clock 80, Grafit, 3000K, std ljusvinkel 40°	GR=Grafit	3000K	40°
77.4661GM3K	Clock 80, Metallgrå, 3000K, std ljusvinkel 40°	GM=Metallgrå	3000K	40°
77.4661GR4K	Clock 80, Grafit, 4000K, std ljusvinkel 40°	GR=Grafit	4000K	40°
77.4661GR4K12	Clock 80, Grafit, 4000K, std ljusvinkel 12°	GR=Grafit	4000K	12°

Beskrivning

SPECIFICATIONS
4W, 300 lumen

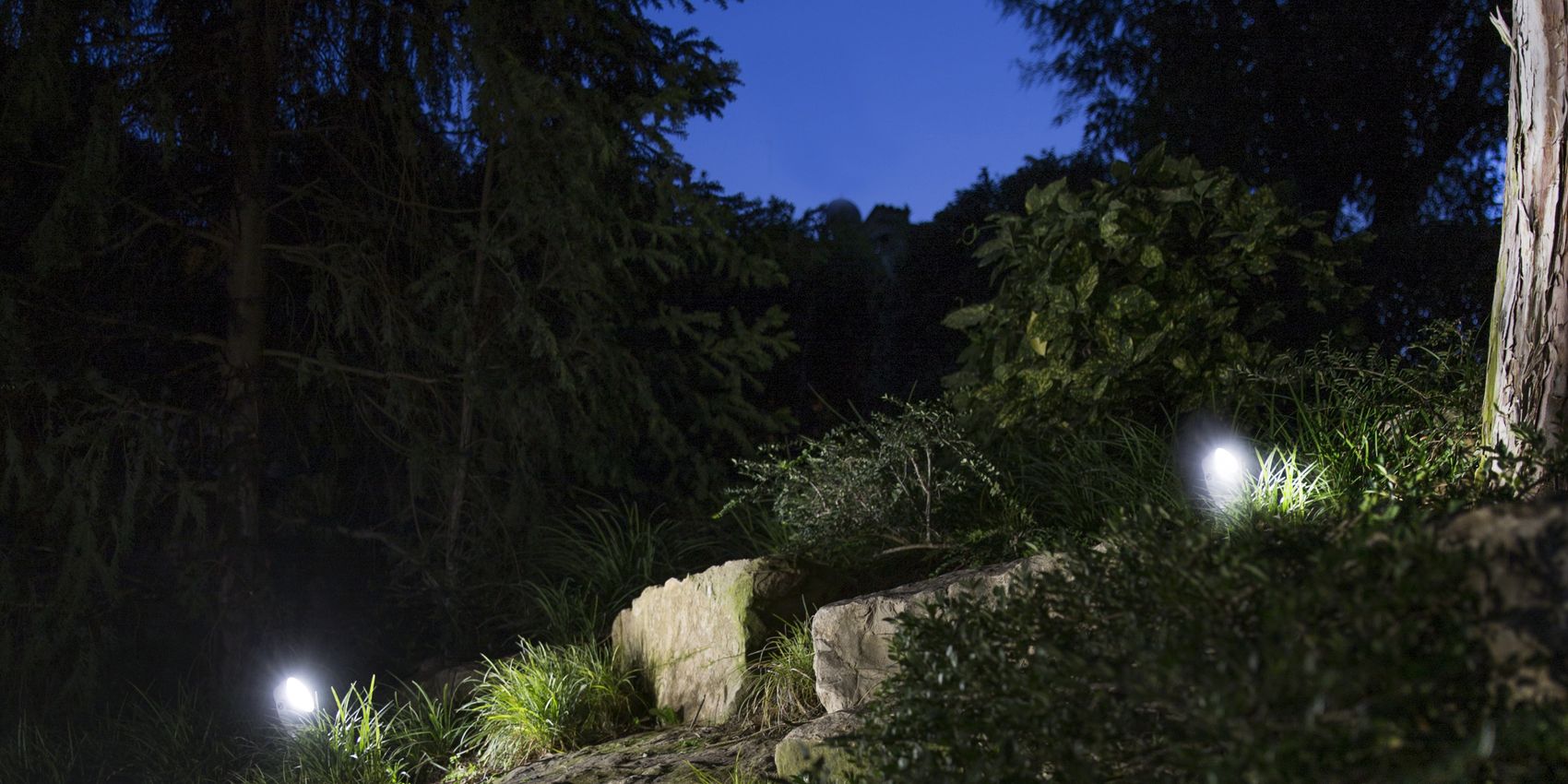

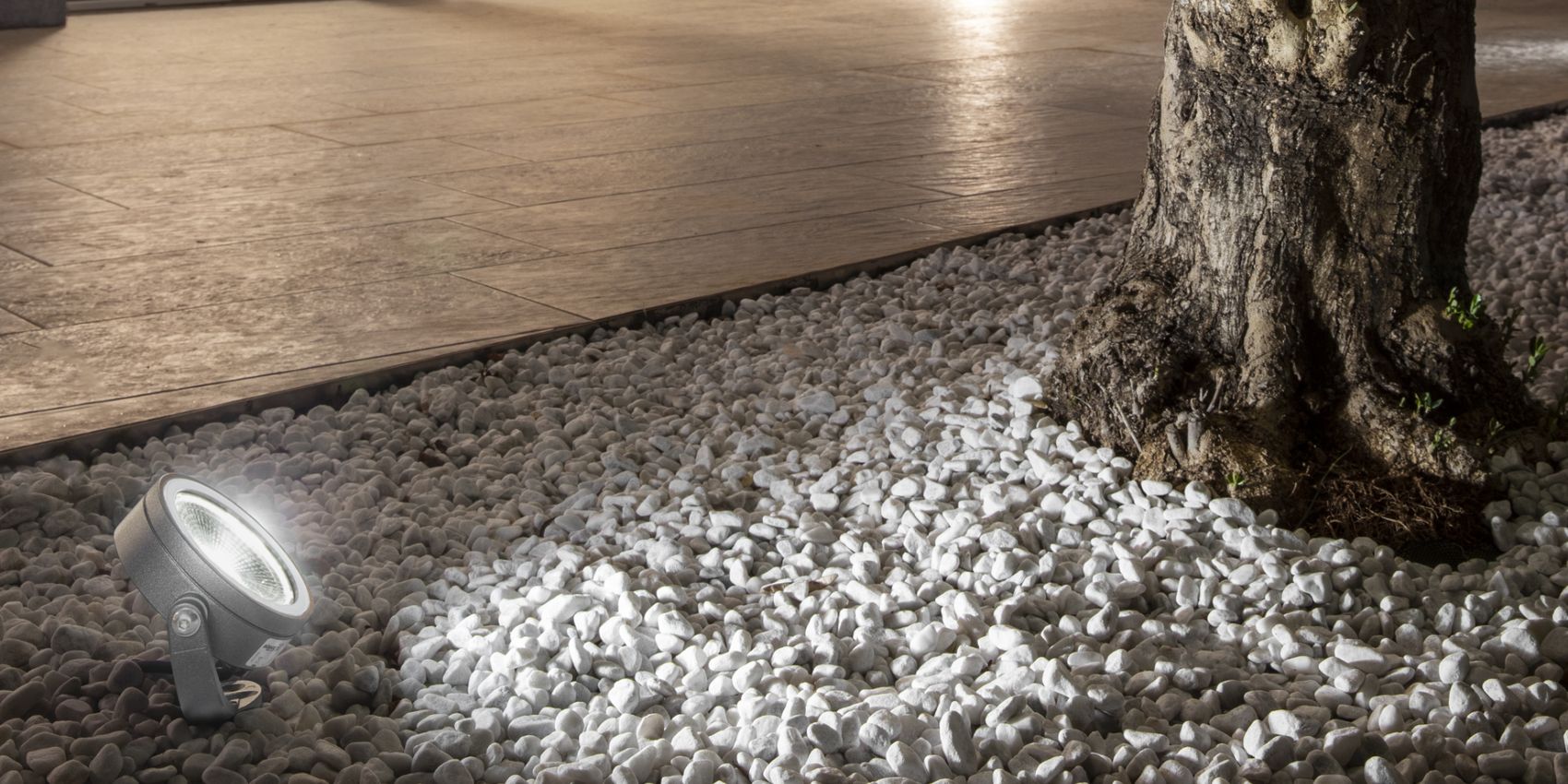

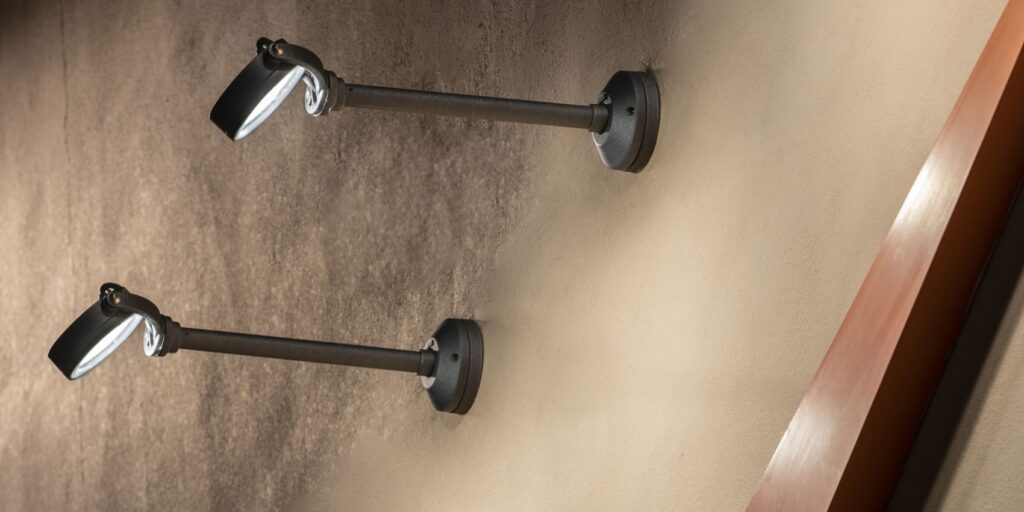

Watertight spotlight, to be installed on the wall, on a stem or on an earth spike in the garden
Structure: body and arm made of primary aluminium alloy with low copper content
Adjustable light body with stable fastening in the chosen point
Ultrawhite transparent tempered glass, sealed to the frame
Wiring: the spotlight is hermetically sealed with a two-component resin and provided with a 1,5 m H05RN-F buriable cable. The cable can pass through a special hole in the base of the arm
Mains voltage LED module, compatible with most phase-cut dimmers / CRI 80
Beam angles: 12° (option) / 40° (standard) / 90° (option)
Double varnished finish after pickling, chromic passivation (trivalent chromium), epoxy primer and polyester powder coating
RGBW version: see RGBW series - code 1186
ON REQUEST:
2700K LED color temperature (code + 27K)
12-24V low voltage version (code + LV)
7 m cable length (code + MT7)
Finishing colours: BI - white / CO - corten
DIMENSIONS
Ø 80 mm
36 mm
96 mm

Reduced thickness
Its 36 mm thickness for both diameters allows it to fit discreetly in outdoor settings.

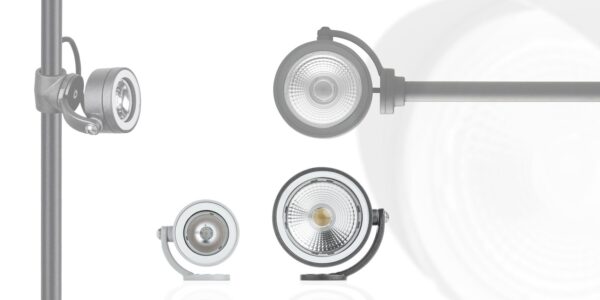

Adjustment
Vertical direction
The body rotates around the locking pin on the vertical surface to easily adjust its direction.
An 8MA screw locks it in place.Horizontal direction
Two eyelets on the base allow for a ± 40° horizontal adjustment.

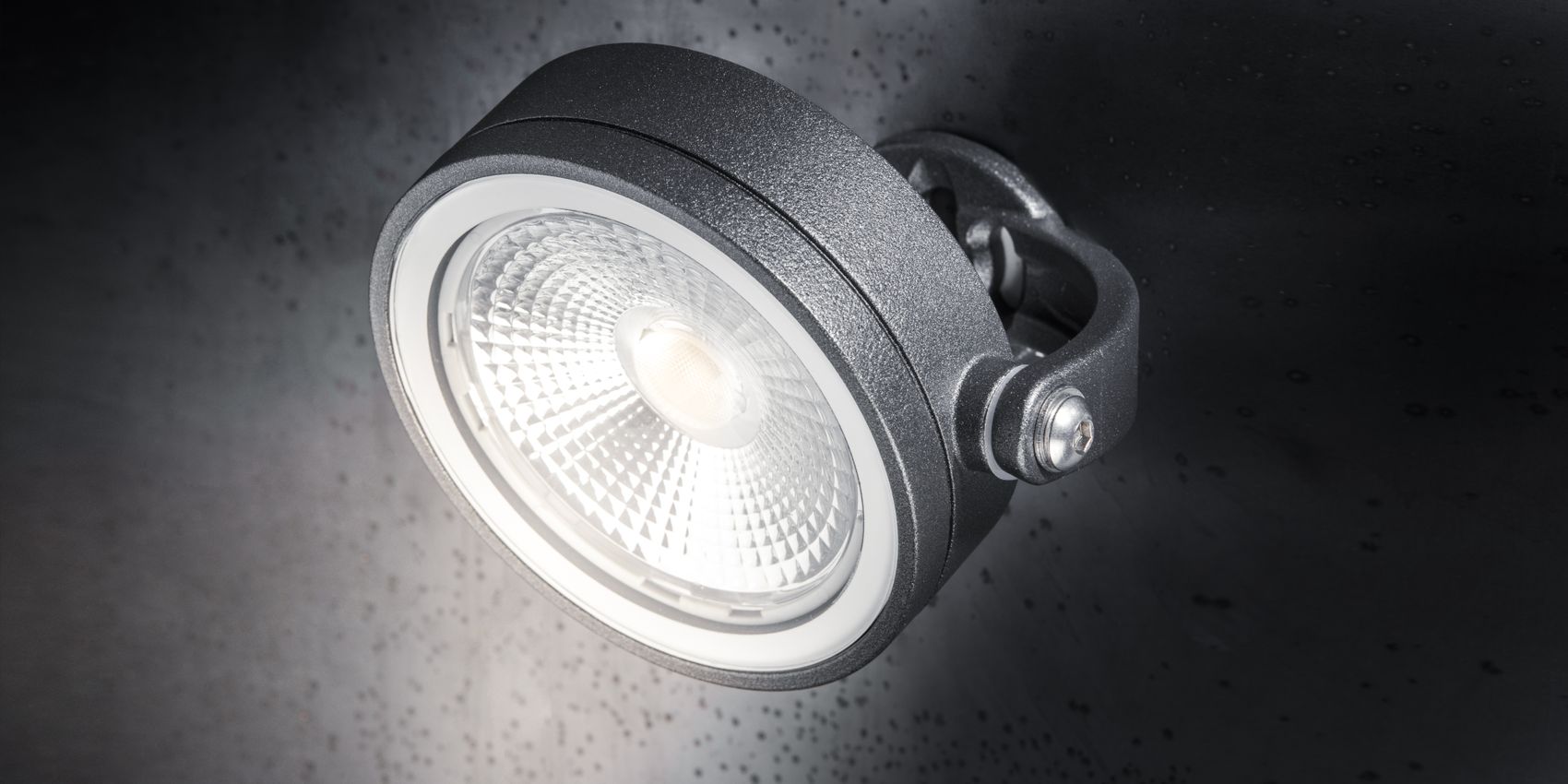

Sealed glass
The front ultrawhite glass is sealed (1) to the frame for a perfect seal.

Watertight wiring
CLOCK is hermetically sealed with a two-component resin and provided with an H05 RN-F cable.
1 - Brass cable gland
2 - Aquastop Resin Finish
3 - Anti-tear cable
