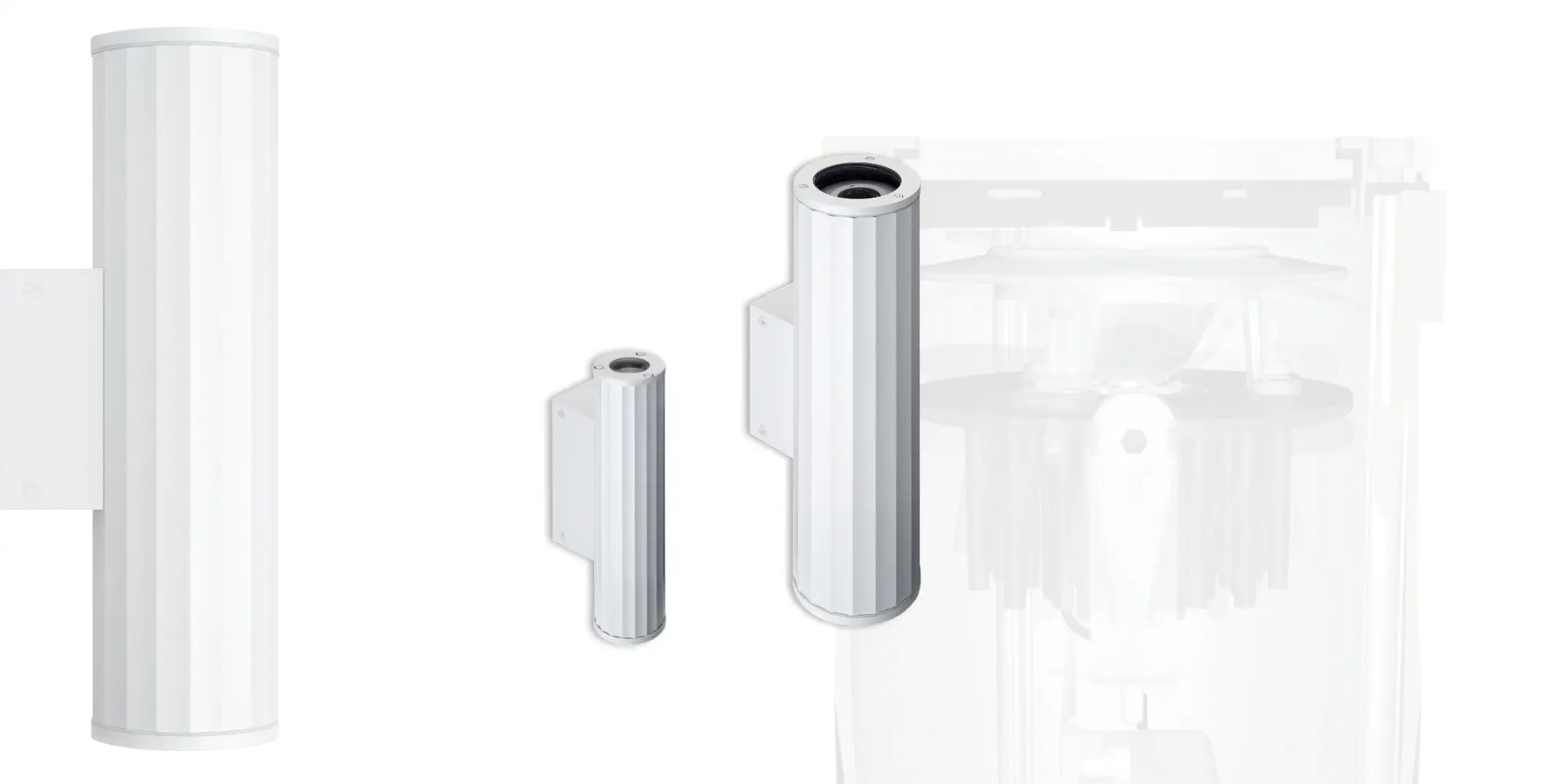

Corinthia 120

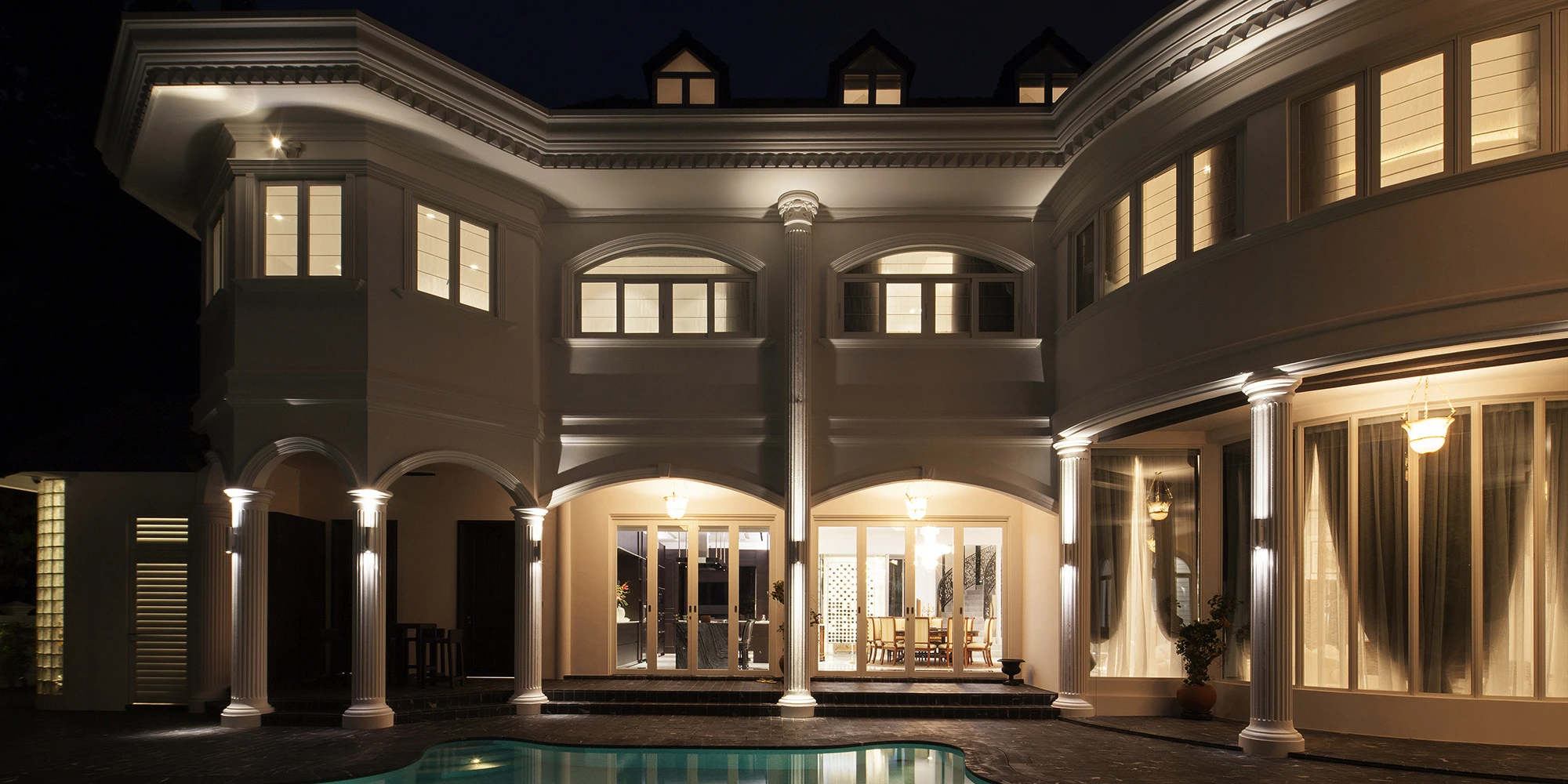

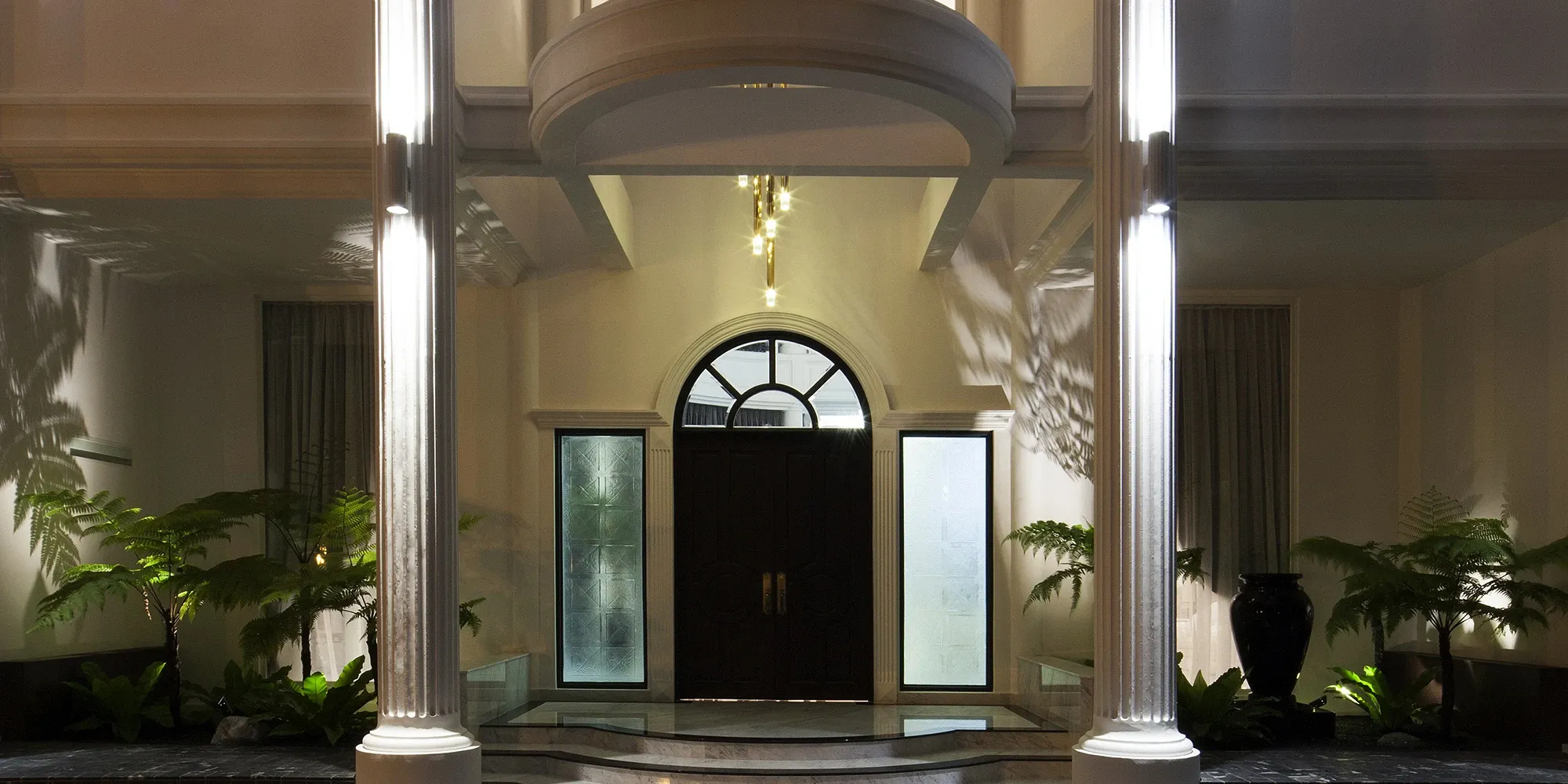

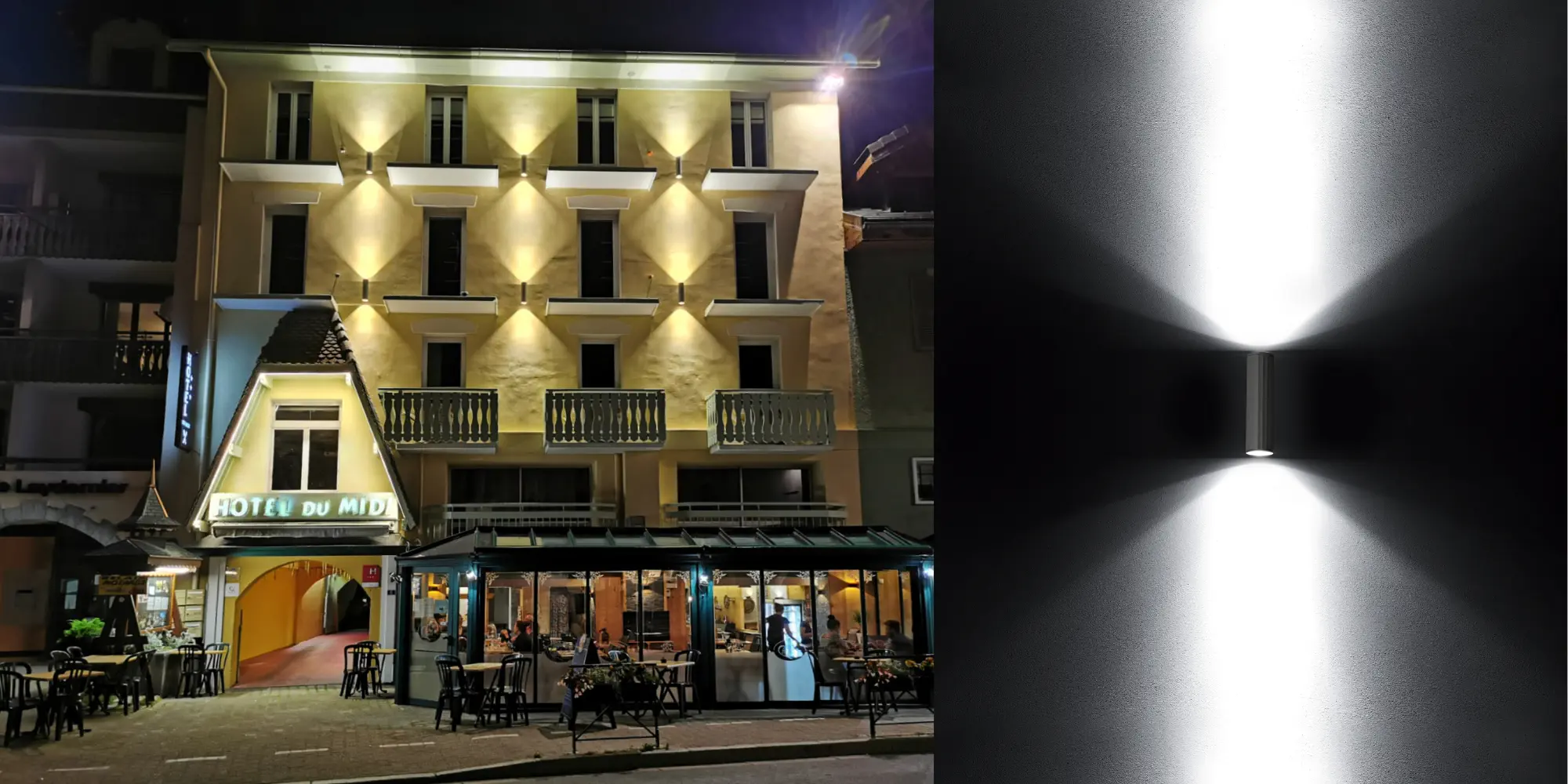

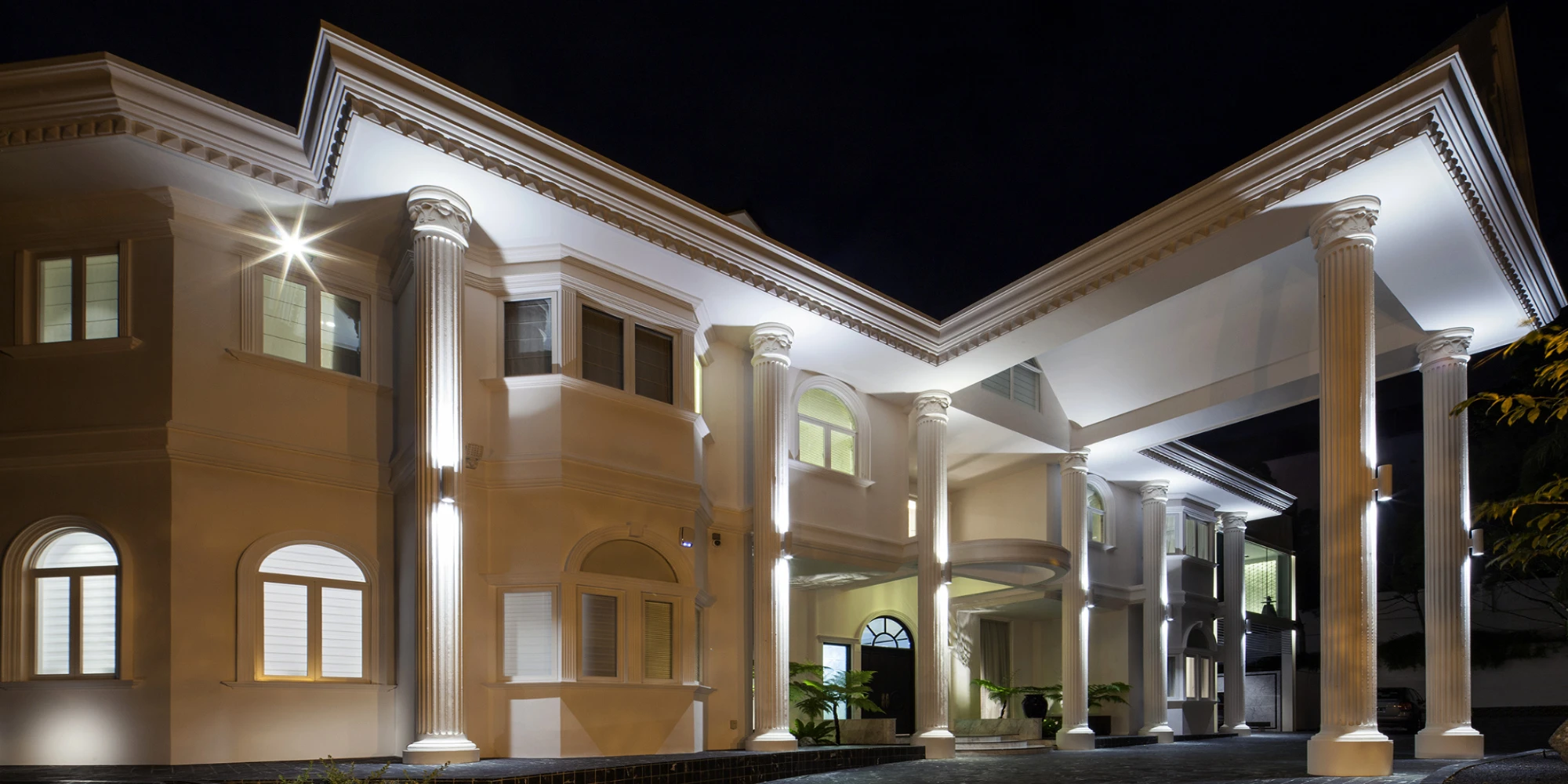

Architectural effect lighting meets timeless style, thus CORINTHIA was born. The cylinders, finely carved with an ancient proportion, welcome light sources of absolute avant-garde. Thanks to the specific technical solutions, the ø 120 version is tilting in order to adjust the beam direction towards the wall and to modulate the effect of the light. Particular attention has been paid to the realization of the tempered closing glass, milled flush with the structure to let the water flow and diffuse the light in an optimal way. Powers and dimensions make CORINTHIA ideal for lighting facades in various contexts, urban or residential, classic or, by contrast, modern and contemporary.

Versioner:

Single emission 1x 11W/1090 lm och 1x 18W/2000 lm

Double emission 2x 11W/2x 1090 lm, och 2x 18W/2x 2000 lm

3 ljusvinklar: 18° (standard), 50° eller 90°.
Antracit eller ljusgrå kulör.

Dimensioner: Höjd 441mm x diameter 120mm. Bygger 175mm ut från vägg inklusive kopplingsboxen.

Kategori:

Beskrivning



FEATURES

  • Technical components

    CORINTHIA Ø 120 mm
    1 or 2 lights available
    Adjustable optics ±10°
    Optics: 18° - 38° - 50° - 90°
    Structure
    A. Milled tempered glass, flush with the frame
    B. Reflector

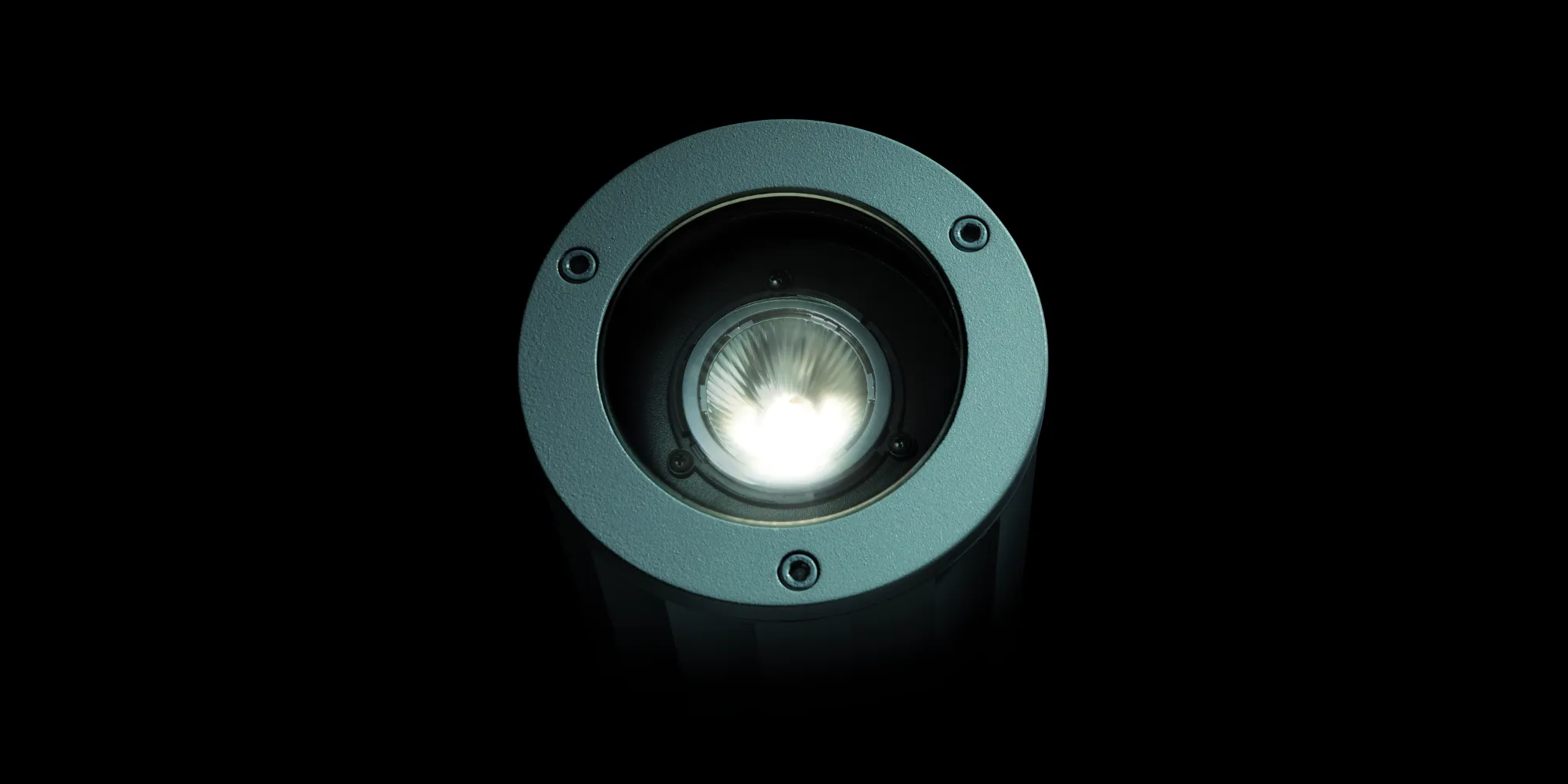

    C. Adjustable optic
    D. Heat sink
    E. Driver
    F. Wall fixing box
    G. Aluminium housing
  • Specific details

    1. Anti-stagnation crystal
    The glass, flush with the frame, avoids water stagnation.
    2. Tilting
    The Ø 120 optics are adjustable ±10°, in order to accent the light effect on the wall, when required.
  • All the combinations available

    CORINTHIA Ø 120 mm
    11W LED - Optics: 18° - 38° - 90°
    18W LED - Optics: 18° - 50° - 90°
