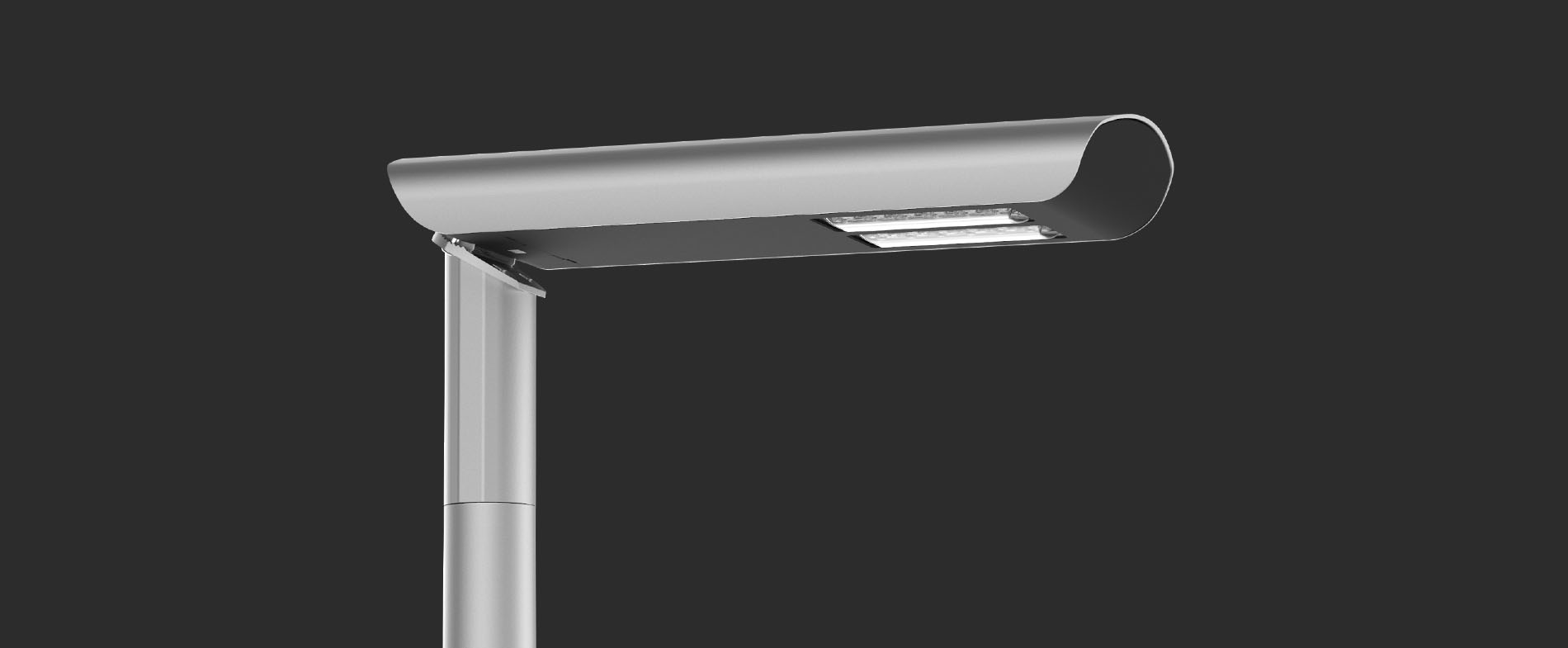

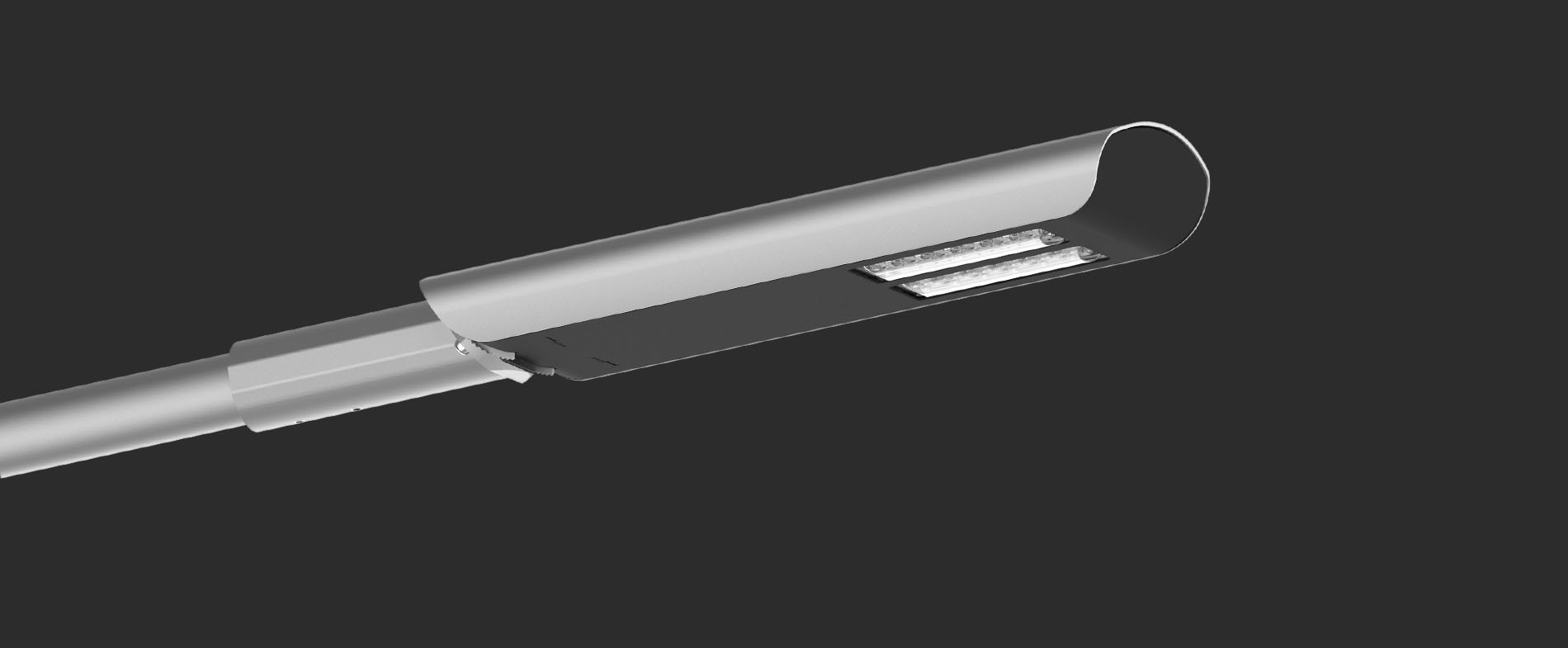

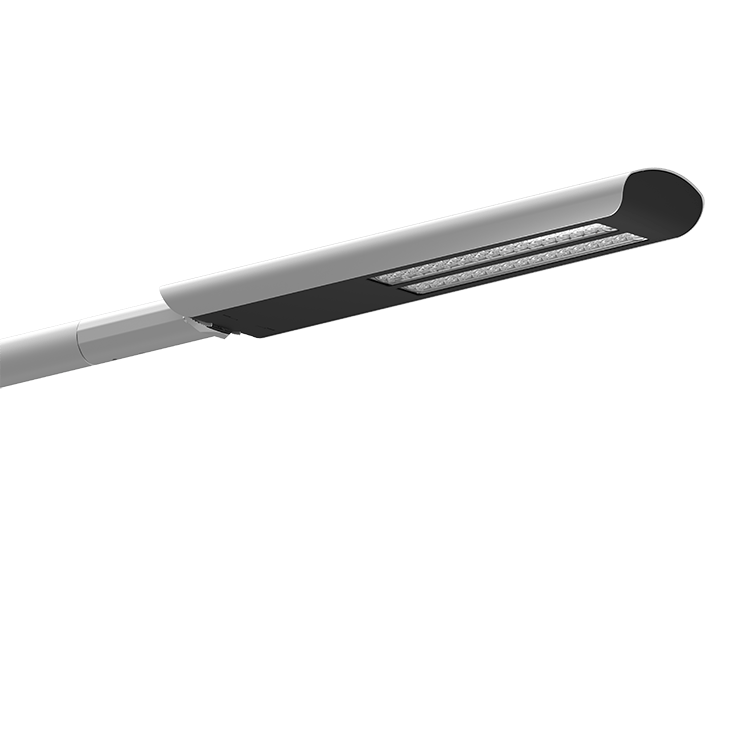

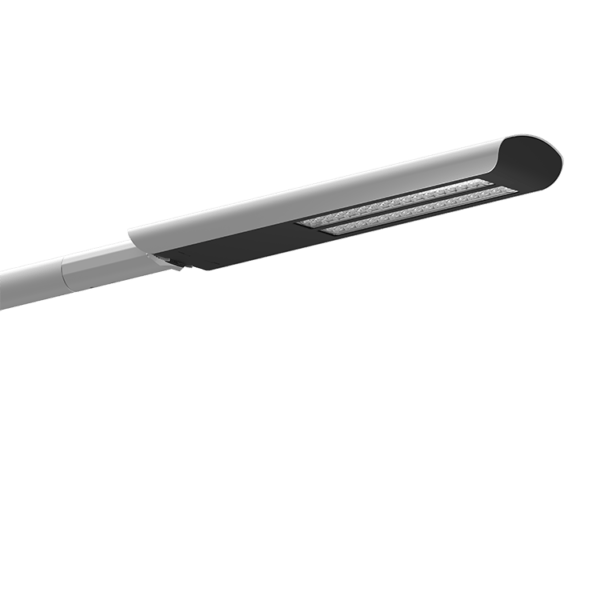

CUDDLE II LED REG

Name: CUDDLE II LED REG
SKU: 3829
Price: 123 SEK
Availability: InStock

123 kr

Application: motorways and expressways, urban roads, residential roads (internal), pedestrians, parkings
Assembly: pole top mounted or on extension arms with ø60 x 100 mm ending
Ingress protection: IP 66 for the optical part and the driver

Material: anodised aluminium alloy
Colour: inox / black
Optical system: PMMA optics, interchangeable LED module. PC-UV diffuser
Number of LEDs: 24 for 48W, 60W, 72W; 64 for 96W, 120W, 144W, 192W
Expected useful lifetime: L90F10 – 50 000h, L80F20 – 100 000h
CRI: >70 for 5000K, 4000K; >80 for 3500K, 2700K
Input voltage frequency: 50/60Hz
Power factor: ≥0.95
Inrush current: : 46A / 250µs for 48W, 60W, 72W; 58A / 340µs for 96W, 120W, 144W; 80A / 225µs for 192W

Beskrivning

Code	Name	LED power	Luminaire Power consumption	Colour temperature (CCT)	Luminaire luminous flux	Luminous efficacy	Net weight

2223133/1/...¹⁾	CUDDLE II LED REG 48	48W	55W	2700K	6000lm	109lm/W	6,7kg
2223133/3/...¹⁾	CUDDLE II LED REG 48	48W	55W	3500K	6250lm	114lm/W	6,7kg
2223133/4/...¹⁾	CUDDLE II LED REG 48	48W	55W	4000K	7450lm	135lm/W	6,7kg
2223133/6/...¹⁾	CUDDLE II LED REG 48	48W	55W	5000K	7450lm	135lm/W	6,7kg
2223134/1/...¹⁾	CUDDLE II LED REG 60	60W	67W	2700K	7000lm	104lm/W	6,7kg
2223134/3/...¹⁾	CUDDLE II LED REG 60	60W	67W	3500K	7350lm	110lm/W	6,7kg
2223134/4/...¹⁾	CUDDLE II LED REG 60	60W	67W	4000K	8550lm	128lm/W	6,7kg
2223134/6/...¹⁾	CUDDLE II LED REG 60	60W	67W	5000K	8550lm	128lm/W	6,7kg
2223135/1/...¹⁾	CUDDLE II LED REG 72	72W	79W	2700K	8050lm	102lm/W	6,7kg
2223135/3/...¹⁾	CUDDLE II LED REG 72	72W	79W	3500K	8450lm	107lm/W	6,7kg
2223135/4/...¹⁾	CUDDLE II LED REG 72	72W	79W	4000K	9950lm	126lm/W	6,7kg
2223135/6/...¹⁾	CUDDLE II LED REG 72	72W	79W	5000K	9950lm	126lm/W	6,7kg
2223137/1/...¹⁾	CUDDLE II LED REG 96	96W	105W	2700K	12700lm	121lm/W	9kg
2223137/3/...¹⁾	CUDDLE II LED REG 96	96W	105W	3500K	13200lm	126lm/W	9kg
2223137/4/...¹⁾	CUDDLE II LED REG 96	96W	105W	4000K	15300lm	146lm/W	9kg
2223137/6/...¹⁾	CUDDLE II LED REG 96	96W	105W	5000K	15300lm	146lm/W	9kg
2223139/1/...¹⁾	CUDDLE II LED REG 120	120W	129W	2700K	15250lm	118lm/W	9kg
2223139/3/...¹⁾	CUDDLE II LED REG 120	120W	129W	3500K	15900lm	123lm/W	9kg
2223139/4/...¹⁾	CUDDLE II LED REG 120	120W	129W	4000K	18400lm	143lm/W	9kg
2223139/6/...¹⁾	CUDDLE II LED REG 120	120W	129W	5000K	18400lm	143lm/W	9kg
2223141/1/...¹⁾	CUDDLE II LED REG 144	144W	154W	2700K	17500lm	114lm/W	9kg
2223141/3/...¹⁾	CUDDLE II LED REG 144	144W	154W	3500K	18300lm	119lm/W	9kg
2223141/4/...¹⁾	CUDDLE II LED REG 144	144W	154W	4000K	21200lm	138lm/W	9kg
2223141/6/...¹⁾	CUDDLE II LED REG 144	144W	154W	5000K	21200lm	138lm/W	9kg
2223146/1/...¹⁾	CUDDLE II LED REG 192	192W	205W	2700K	20400lm	100lm/W	9kg
2223146/3/...¹⁾	CUDDLE II LED REG 192	192W	205W	3500K	21300lm	104lm/W	9kg
2223146/4/...¹⁾	CUDDLE II LED REG 192	192W	205W	4000K	24600lm	120lm/W	9kg
2223146/6/...¹⁾	CUDDLE II LED REG 192	192W	205W	5000K	24600lm	120lm/W	9kg

1) Symbol of chosen optical system eg. 2223133/6/T2 is CUDDLE II LED REG 48 5000K with T2 optical system
