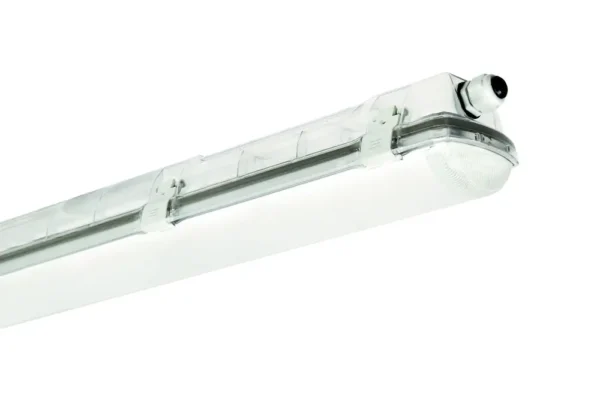

NANOTTICA ES TRS - Katalog

… energy saver, exceptional efficiency and UGR,
ceiling height from 3.5 to 8 m, impact resistant.

Compared to its basic version, fully transparent Nanottica ES TRS PC boasts considerably lower UGR values as well as lower energy consumption, the latter translating into considerably higher luminous efficacy (lm/W).

The fitting is highly recommended for illumination of premises where workers’ visual precision is of paramount importance. These include workshops where fine assembly work is performed as well as craft workshops and visual inspection areas.

Its standard beam angle makes it a perfect choice for premises with an optimum luminaire installation height of 3.5 to 8 m. It is designed for indoor spaces, industrial premises, agricultural buildings, warehouses as well as sports facilities, transport hubs, car parks and garages, workshops and laboratories with no explosion hazard. IP69-rated and HACCP-compliant, the fitting’s design also makes it a great choice for the food industry.

Made of clear polycarbonate, the base and the diffuser boast high impact and deformation resistance. Emissions in the environment of use may reduce the usability of the plastics.

Fullständig katalog kan hämtas under fliken downloads.

Kategori:

Beskrivning

Features

  • Patented optics ensures absolute control over light beam distribution
  • Optional throughwiring (up to 7 wires inside the light fitting)
  • Optimum luminaire installation height from 3.5 to 8 m
  • Variable suspension pitch; optional installation of light fitting even on an existing structure on which the original light fittings were suspended
  • Standard model - CRI > 80: 4000 K
  • At request CRI > 80: 3000 K, 5000 K, 6500 K, CRI > 90: 3000 K, 4000 K, 5000 K, 6500 K
  • Package contains stainless hooks and stainless brackets

Technical data

  • System efficacy: 171 lm/W
  • Degree of protection: IP66/IP69
  • Minimum ambient temperature: ta = -25 °C
  • Maximum ambient temperature: ta = 50 °C
  • Minimum ambient temperature: ta = 0 °C version with emergency back-up source
  • Maximum ambient temperature: ta = 25 °C version with emergency back-up source
  • Life time: 50000 hours / L90/B10
  • Unified Glare Ratio (UGR) from 17,1 to 20,5
  • Impact strength: IK10
  • Chromaticity tolerance (initial MacAdam): SDCM3
  • Certification CE, ENEC, CB, HACCP

Attachment method

  • Suitable for suspended mounting
  • Suitable for ceiling mounting
  • Suitable for wall mounting
  • Suitable for surface mounting

Materials / finishes

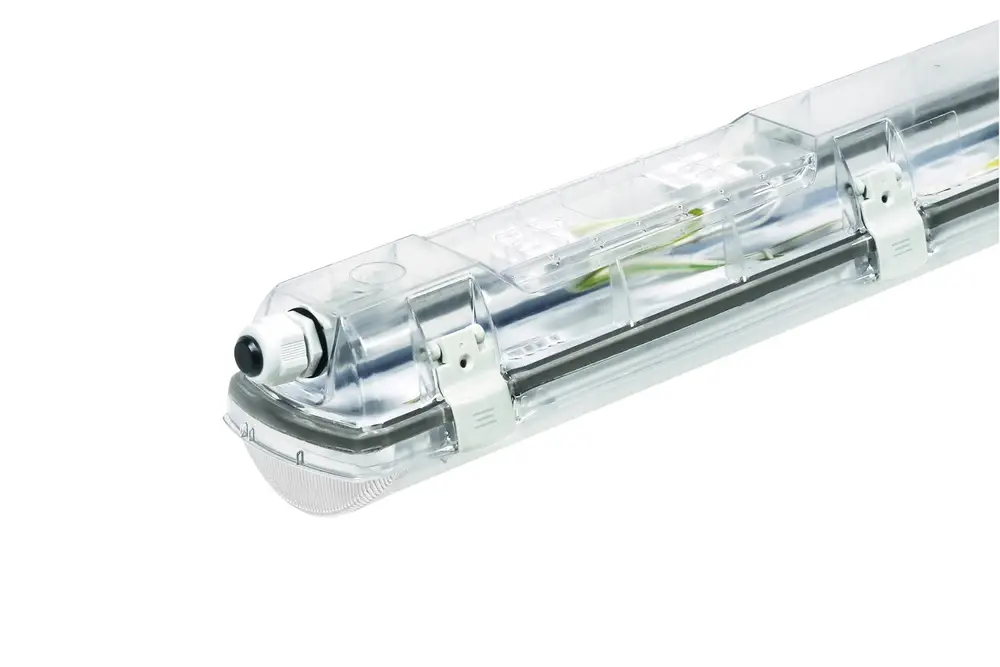

  • Body: clear PC (high mechanical resistance, UV stability)
  • Diffuser: clear PC with nano-optics (high mechanical resistance, UV stability)

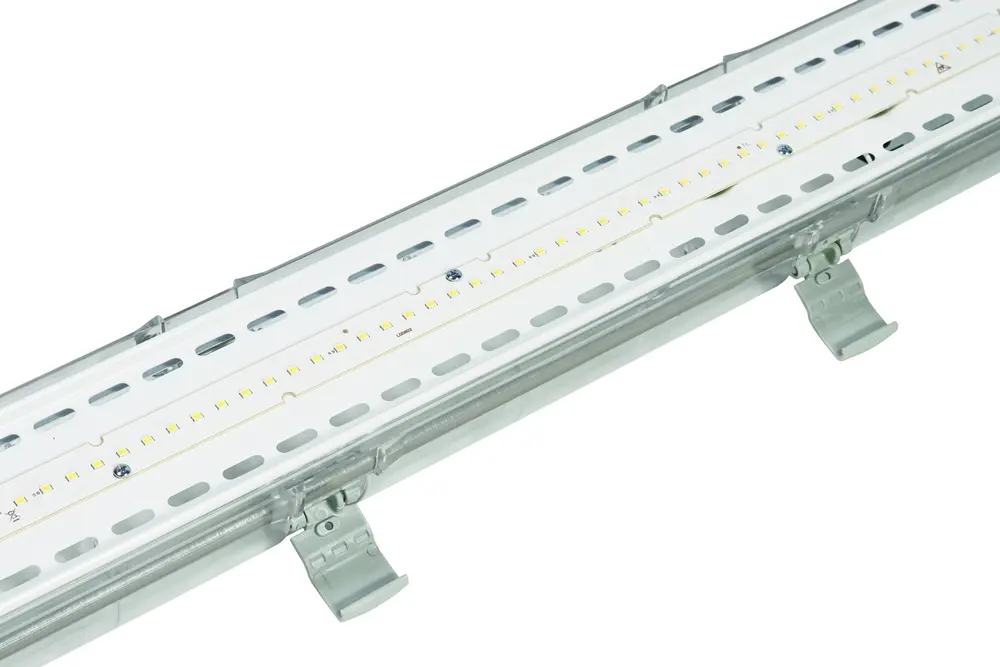

  • Reflector: steel sheet, white (RAL 9003), modified for indirect lighting
  • Clips: polyamide + 15 % fibreglass, stainless steel + polyamide
  • Sealing: polyurethane (PUR), foam-filled base groove
  • Connection: screwless three-pole terminal block, screwless three-pole terminal block, 3-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand), screwless five-pole terminal block, 5-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand), screwless five-pole terminal block, screwless seven-pole terminal block, 7-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand), screwless seven-pole terminal block

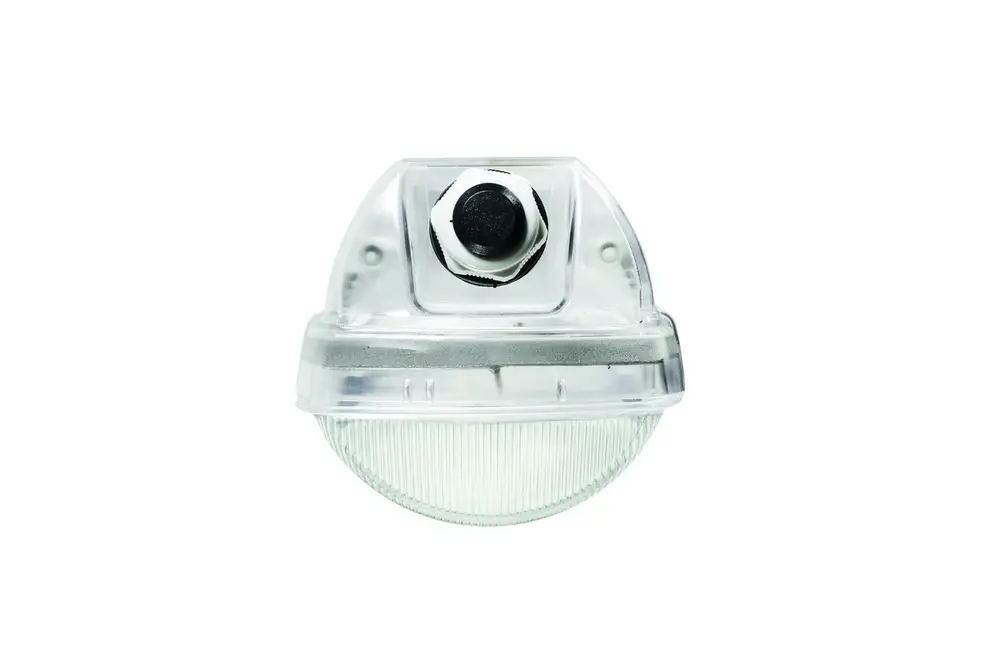

  • Cable glands: Cable glands: PG 13.5 thread

Electric equipment

  • It can be delivered in emergency version
  • It can be delivered in dimmable version

Katalog NANOTTICA ES TRS

Download

Full katalog alla versioner av NANOTTICA ES TRS
